 Taper Roller Bearings |

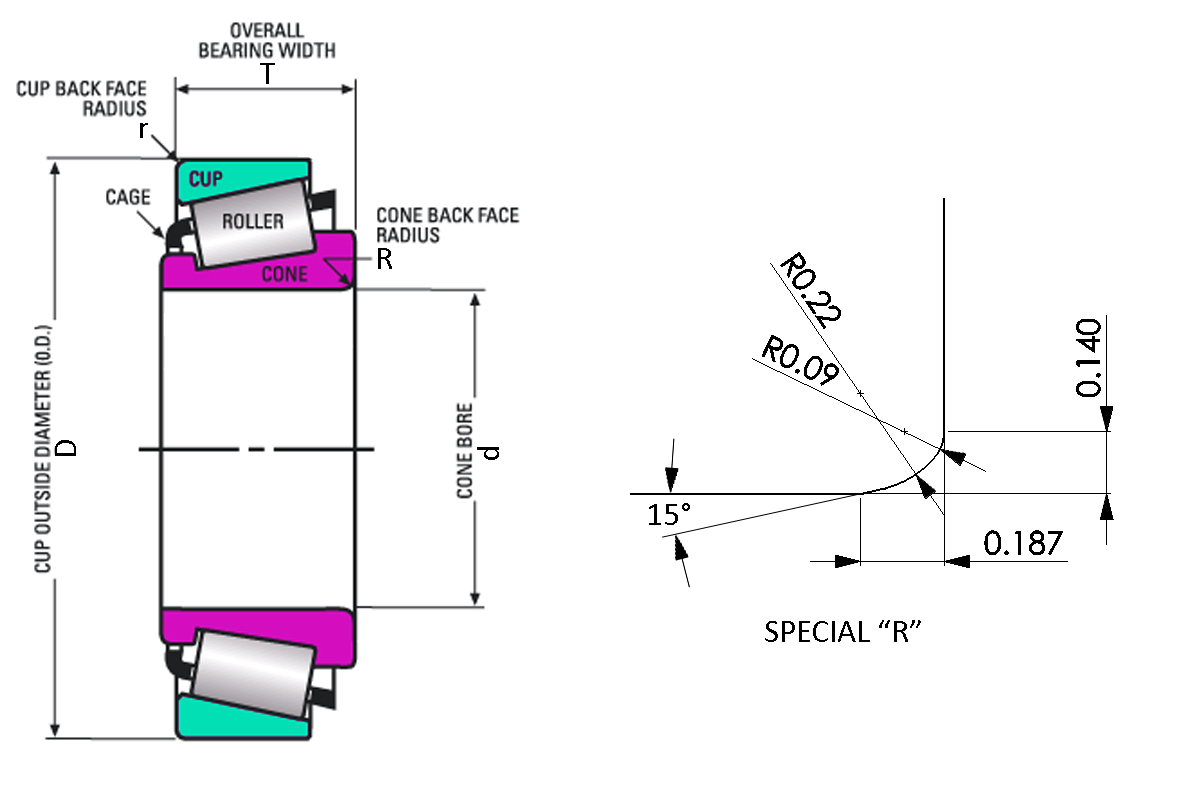

| Bearing Number | Bore | Outside Diameter | Width | Eff. Load Center | Min Radius | Max Radius |
| Cone | Cup | d | D | T | a | R | r |
| LM-11949 | LM-11910 | 0.7500 | 1.7810 | 0.6100 | -0.22 | 0.05 | 0.05 |
| L-44643 | L-44610 | 1.0000 | 1.9800 | 0.5600 | -0.13 | 0.05 | 0.05 |
| L-44649 | L-44610 | 1.0625 | 1.9800 | 0.5600 | -0.13 | 0.14 | 0.05 |
| LM-67048 | LM-67010 | 1.2500 | 2.3280 | 0.6250 | -0.12 | SPECIAL | 0.05 |
| 15123 | 15245 | 1.2500 | 2.4409 | 0.7150 | -0.19 | SPECIAL | 0.05 |
| 14125A | 14276 | 1.2500 | 2.7170 | 0.7813 | -0.17 | 0.14 | 0.05 |
| LM-48548 | LM-48510 | 1.3750 | 2.5625 | 0.7100 | -0.14 | SPECIAL | 0.05 |
| L-68149 | L-68111 | 1.3775 | 2.3612 | 0.6250 | -0.10 | SPECIAL | 0.05 |
| JL-69349 | JL-69310 | 1.4961 | 2.4803 | 0.6693 | -0.09 | SPECIAL | 0.05 |
| 25580 | 25520 | 1.7500 | 3.2650 | 0.9375 | -0.25 | 0.14 | 0.03 |
|
|
