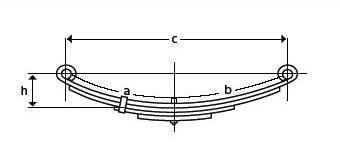

Double Eye Springs |
| Part Number |
Leaves |
Width |
Steel Gauge |
Free Length
c |
Arc
a** |
Length
b** |
Free Open
h |
Capacity
(lbs) per spring |
Eye
ID |
Bushing
ID |
Bushing |
Weight
(lbs) |
Similar To: |
| UNA®-072 | 3 | 1.75 | 0.323 |
18.31 | 10.12 | 10.12 | 3.00 | 1650 |
7/8 | NONE | NONE | 8.75 | |
| UNA®-030 | 4 | 1.75 | 0.259 |
19.92 | 10.75 | 10.75 | 3.25 | 1290 |
11/16 | 1/2N | PE-226 | 9.25 | |
| UNA®-041 | 3 | 1.75 | 0.323 |
20.00 | 11.10 | 11.10 | 3.25 | 1500 |
7/8 | NONE | NONE | 9.39 | |
| UNA®-168 | 3 | 1.75 | 0.237 |
20.31 | 11.00 | 11.00 | 3.38 | 700 |
11/16 | 9/16N | PE-227 | 5.67 | 72-16;
DX-720 |
| UNA®-169 | 3 | 1.75 | 0.262 |
20.38 | 11.00 | 11.00 | 3.19 | 1000 |
11/16 | 9/16N | PE-227 | 6.89 | 72-17;
DX-1020 |
| UNA®-167 | 4 | 1.75 | 2/0.291
2/0.262 |
20.50 | 11.13 | 11.13 | 3.35 | 1400 |
11/16 | 9/16N | PE-227 | 9.25 | 72-13 |
| UNA®-033 | 2 | 1.75 | 0.197 |
22.75 | 12.31 | 12.31 | 3.81 | 300 |
7/8 | NONE | NONE | 4.35 | |
| UNA®-135 | 3 | 1.75 | 2/0.323
1/0.291 |
23.13 | 12.50 | 12.50 | 3.63 | 1250 |
11/16 | 9/16N | PE-227 | 9.00 | 72-06;
93182-12 |
| UNA®-216 | 3 | 1.75 | 0.360 |
23.13 | 12.41 | 12.41 | 3.50 | 1750 |
11/16 | 9/16N | PE-227 | 10.64 | 72-09;
124-3L;WAH-3; 93180; 1750 |
| UNA®-079 | 4 | 1.75 | 0.360 |
23.13 | 12.56 | 12.56 | 3.63 | 2500 |
11/16 | 9/16N | PE-227 | 13.34 | 72-20;
93183; WAH-4 |
| UNA®-113 | 3 | 1.75 | 0.291 |
23.50 | 12.63 | 12.63 | 3.50 | 1000 |
11/16 | 9/16N | PE-227 | 9.30 | 545-3L;
125-3 |
| UNA®-114 | 4 | 1.75 | 0.291 |
23.50 | 12.68 | 12.68 | 3.56 | 1500 |
11/16 | 9/16N | PE-227 | 10.80 | 545-4L;
125-4 |
| UNA®-188 | 5 | 1.75 | 0.291 |
24.00 | 12.64 | 12.64 | 3.19 | 1625 |
11/16 | 1/2N | PE-226 | 13.65 | 545-5;
125-5 |
| UNA®-222 | 6 | 1.75 | 3/0.360
3/0.323 |
24.88 | 13.25 | 13.25 | 3.38 | 2650 |
11/16 | 9/16N | PE-227 | 17.34 |
UNA®-112; 72-27; 1769; SW-6; 933160 |
| UNA®-219 | 3 | 1.75 | 2/0.323
1/0.291 |
25.13 | 13.29 | 13.29 | 3.18 | 1250 |
11/16 | 9/16N | PE-227 | 9.54 | UNA®-107;
72-22; 93101; SW-3B; 1760; PP3A |
| UNA®-212 | 4 | 1.75 | 0.323 |
25.13 | 13.19 | 13.19 | 3.25 | 1830 |
11/16 | 9/16N | PE-227 | 11.40 |
UNA®-108; SW-4B; 72-42; 93168; UNA®-157; 4342-17 |
| UNA®-221 | 4 | 1.75 | 3/0.401
1/0.360 |
25.13 | 13.29 | 13.29 | 3.12 | 3000 |
11/16 | 9/16N | PE-227 | 15.15 |
UNA®-117; 72-26; 1761; ML-4; 93115 |
| UNA®-217 | 3 | 1.75 | 2/0.360
1/0.323 |
25.25 | 13.13 | 13.13 | 3.00 | 1500 |
11/16 | 9/16N | PE-227 | 10.67 | 72-23;
UNA®-108; 1761 |
| UNA®-220 | 3 | 1.75 | 2/0.401
1/0.360 |
25.25 | 13.25 | 13.25 | 3.00 | 2000 |
11/16 | 9/16N | PE-227 | 11.46 |
UNA®-109; 72-24; 1762; 93102; SW-3; PP3; 33839 |
| UNA®-218 | 4 | 1.75 | 2/0.401
2/0.360 |
25.25 | 13.25 | 13.25 | 3.00 | 2500 |
11/16 | 9/16N | PE-227 | 14.10 |
UNA®-110; 72-25; 1763; 93181; 93103; SW-4 |
| UNA®-111 | 5 | 1.75 | 0.360 |
25.25 | 13.33 | 13.33 | 3.12 | 3000 |
11/16 | 9/16N | PE-227 | 16.20 | 1764;
SW-5; 93163; 33600 |
| UNA®-115 | 1T | 1.75 | 0.850 |
25.25 | 13.20 | 13.20 | 3.00 | 3000 |
0.59 | NONE | NONE | 9.00 | 72-40;
TE-330; MD-35; 93118 |
| UNA®-223 | 6 | 1.75 | 0.360 |
25.25 | 13.39 | 13.39 | 3.50 | 3380 |
11/16 | 9/16N | PE-227 | 19.25 | 93160;
4362-22 |
| UNA®-121 | 2 | 1.75 | 0.259 |
26.00 | 14.03 | 14.03 | 4.13 | 500 |
11/16 | 9/16N | PE-227 | 6.62 | 26-350;
AS-2; 5015-2; UNA®-287 |
|
|
1 | 2
'UNA®' is a trademark of The Universal Group Corp., Pennsauken,
New Jersey.
